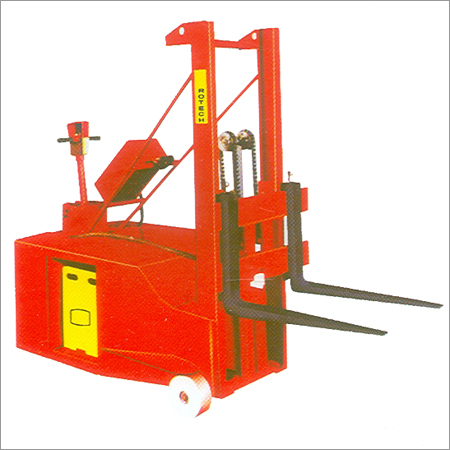

Pedestrian Electric Fork Truck

Pedestrian Electric Fork Truck
Pedestrian Electric Fork Truck
Product Code : MTB
Product Description

Pedestrian Electric Fork Truck

 Model KG MT050 MT075 MT100

 Capacity

(Uniformly distributed)


  500 750 1000
Travel Speed

 (Laden)

(Unladen)

 4.0 Km/Hr.

5.6 Km/Hr.

 3.5 Km/Hr.

5.5 Km/Hr.

 3.2 Km/Hr.

5.2 Km/Hr.

 Lifting Speed

 (Laden)

(Unladen)

 14 m/min.

18 m/min.

 11 m/min.

18 m/min.

 10.5 m/min.

18.0 m/min.

 Lowering Speed

 (Laden)

(Unladen)

 20 m/min.

15 m/min.

 22 m/min.

15 m/min.

 24 m/min.

15 m/min.

 Single Drive Wheel

(Rubberized)

mm
 254 dia* 102
 254 dia* 102
254 dia* 102

 Load Wheel

(Polymer)

 mm203 dia * 86
 203 dia * 86
203 dia * 86
 Traveling motor through a double reduction chain drive
  1.0H.P., 24V
 1.0H.P., 24V
 1.75H.P., 24V
 Lifting Motor by a hydraulic Pump
  6.3 H.P., 24V
 6.3 H.P., 24V
 6.3. H.P., 24V
 Battery  24V, 223 A.H.
 24V, 223 A.H.
 24V, 223 A.H.
 Battery Charger
  24V, 30 amp.
 24V, 30 amp.
 24V, 30 amp.



Features:-

 1. Body Structure in steel sheet.

2. Steering angle at 180 degree.

3. Brakes operated by control handle, in the vertical & horizontal position. The control handle is spring loaded.

4. Two stage resistance controlled traction speed by finger controlled push buttons which operated 24V heavy duty solenoid switches.

5. The motor is energized by a macro switch, through a Contractor, actuated by the Control Valve Lever thus ensuring running of the motor only while lifting. Lowering is done by the same lever, pushed in the opposite side the forks come down of their own weight.

6. Electronic Control in Traction as optional.
